Thursday, January 17, 2013

configure EM 12c to monitor physical standby database

follow "27 Setting Up High Availability " in Oracle® Enterprise Manager Cloud Control Administrator's Guide
12c Release 2 (12.1.0.2)

"To allow Enterprise Manager to monitor a Physical Standby database (which is typically in a mounted state), specify sysdba monitoring privileges. This can be specified either during the Standby creation wizard itself or post creation by modifying the Monitoring Configuration for the standby database target."

In my case, DG is primary database , and DGS is the standby database.









as suggested, I provided sys password here.  sysdba(sys) or sysoper account is preferred credential for monitoring metric / reconfigure database, as Mounted / standby database can't be monitored by normal user. I think in production, some IT security may require change sys password regularly .

  1. Verify the Physical Standby

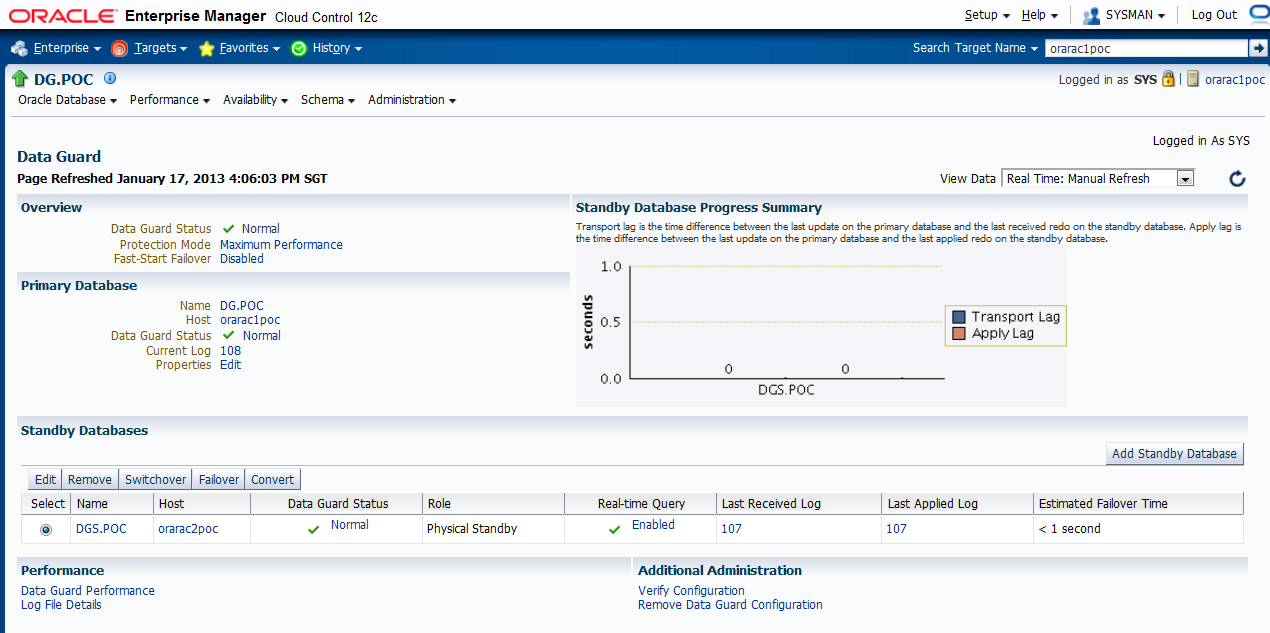

    Verify the Physical Standby database through the Enterprise Manager Console. Click the Log Switch button on the Data Guard page to switch log and verify that it is received and applied to the standby database.




    Initializing
    Connected to instance orarac1poc:DG
    Starting alert log monitor...
    Updating Data Guard link on database homepage...
    WARNING: Broker name (dg) and target name (DG.POC) do not match.
    WARNING: The broker name will be renamed to match the target name.
    WARNING: Broker name (dgs) and target name (DGS.POC) do not match.
    WARNING: The broker name will be renamed to match the target name.
    Skipping verification of fast-start failover static services check.

    Data Protection Settings:
      Protection mode : Maximum Performance
      Redo Transport Mode settings:
        dg: ASYNC
        dgs: ASYNC

      Checking standby redo log files.....not checked due to broker name mismatch. Run verify again.

    Checking Data Guard status
      dg : Normal
      dgs : Normal

    Checking inconsistent properties

    Checking agent status
    WARNING: No credentials available for target. orarac1poc
     Attempting agent ping ... Down

    WARNING: No credentials available for target. orarac2poc
     Attempting agent ping ... Down




    Processing completed.
